National Electrical Code Violations


For Maximum Resolution, Click on the Body of the Picture.

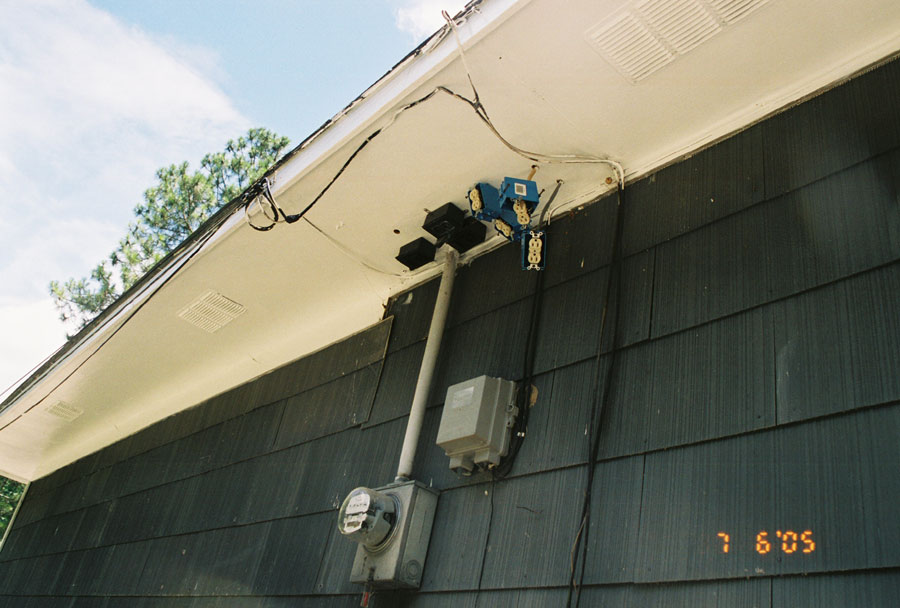

Duplex Receptacles, non-GFCI, above Meterbase (AC05-001).
Receptacles Under Meterbase

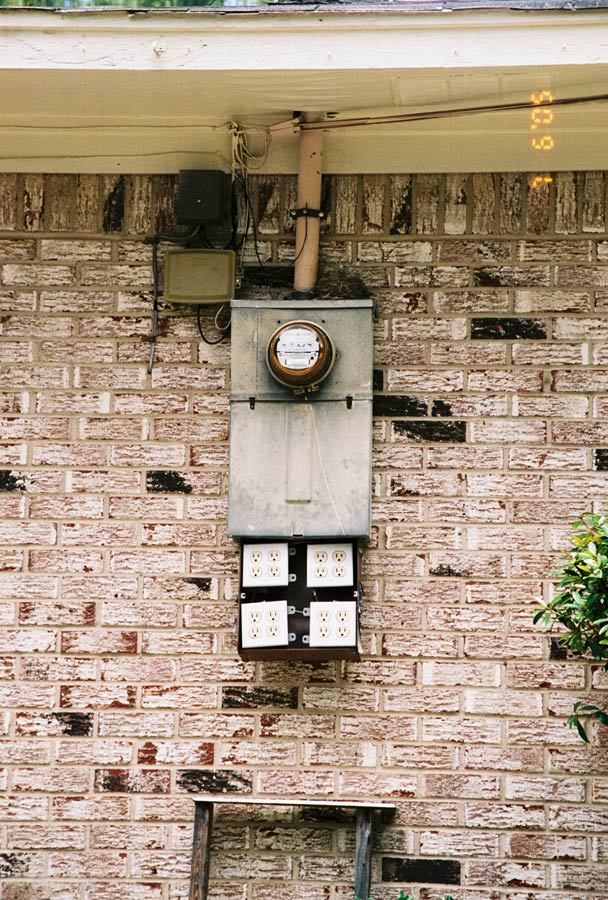

4 Quad Receptacles, non GFCI, Under Meterbase (AC05-001)
Receptacles Under Meterbase

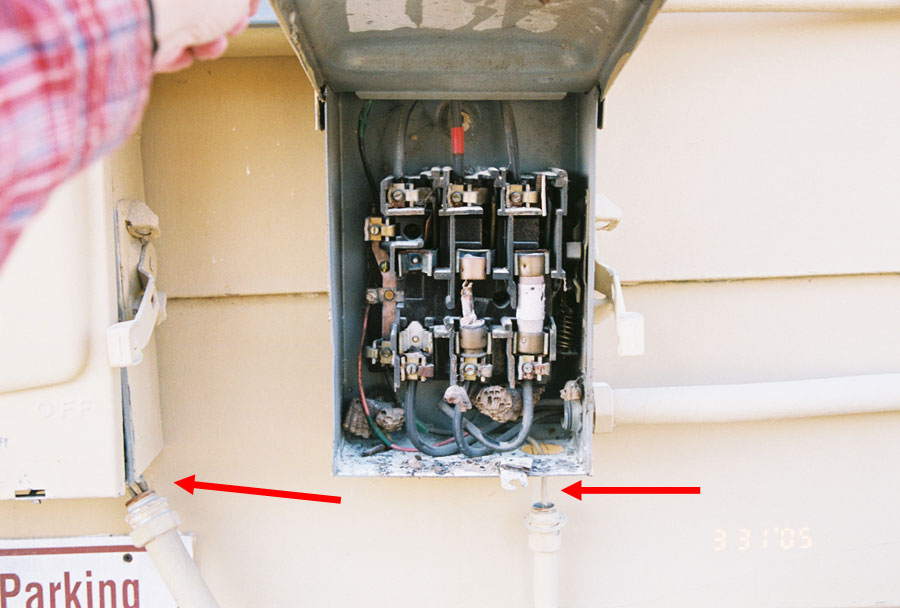

Conduit Not Connected (F05-11).
Receptacles Under Meterbase

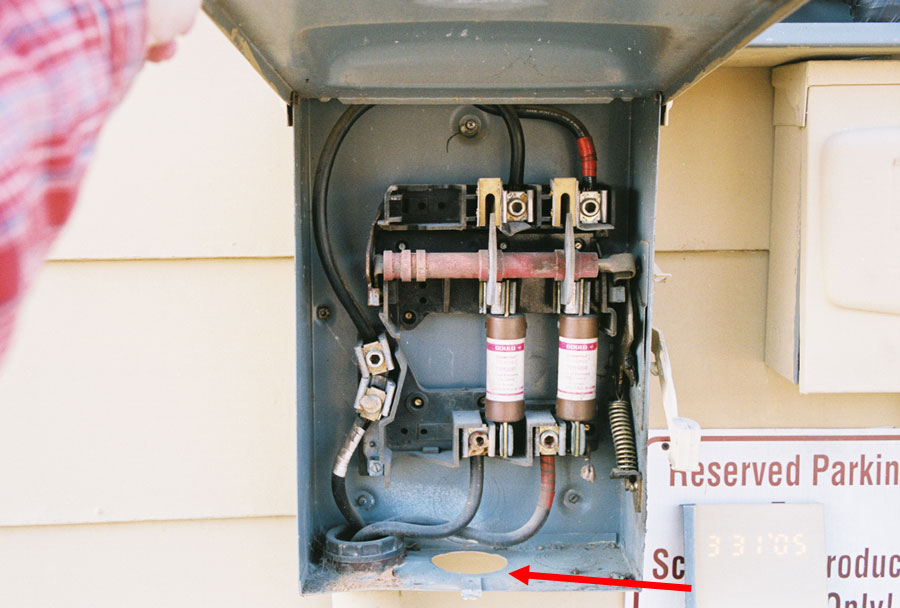

Knockout Hole Not Covered (F05-11).
Receptacles Under Meterbase

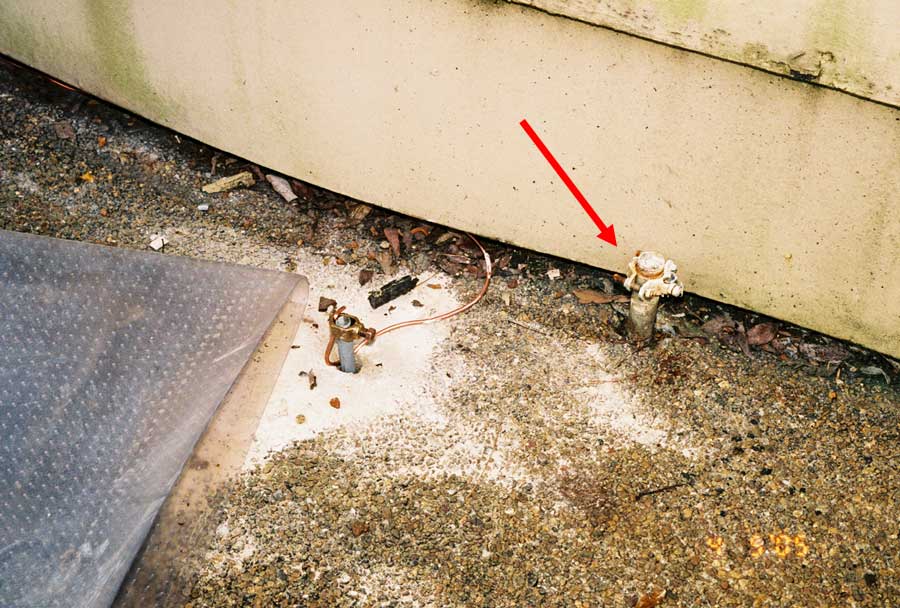

Pipe Was Used for Groundrod and #14 Stranded Wire (F05-11).
Receptacles Under Meterbase

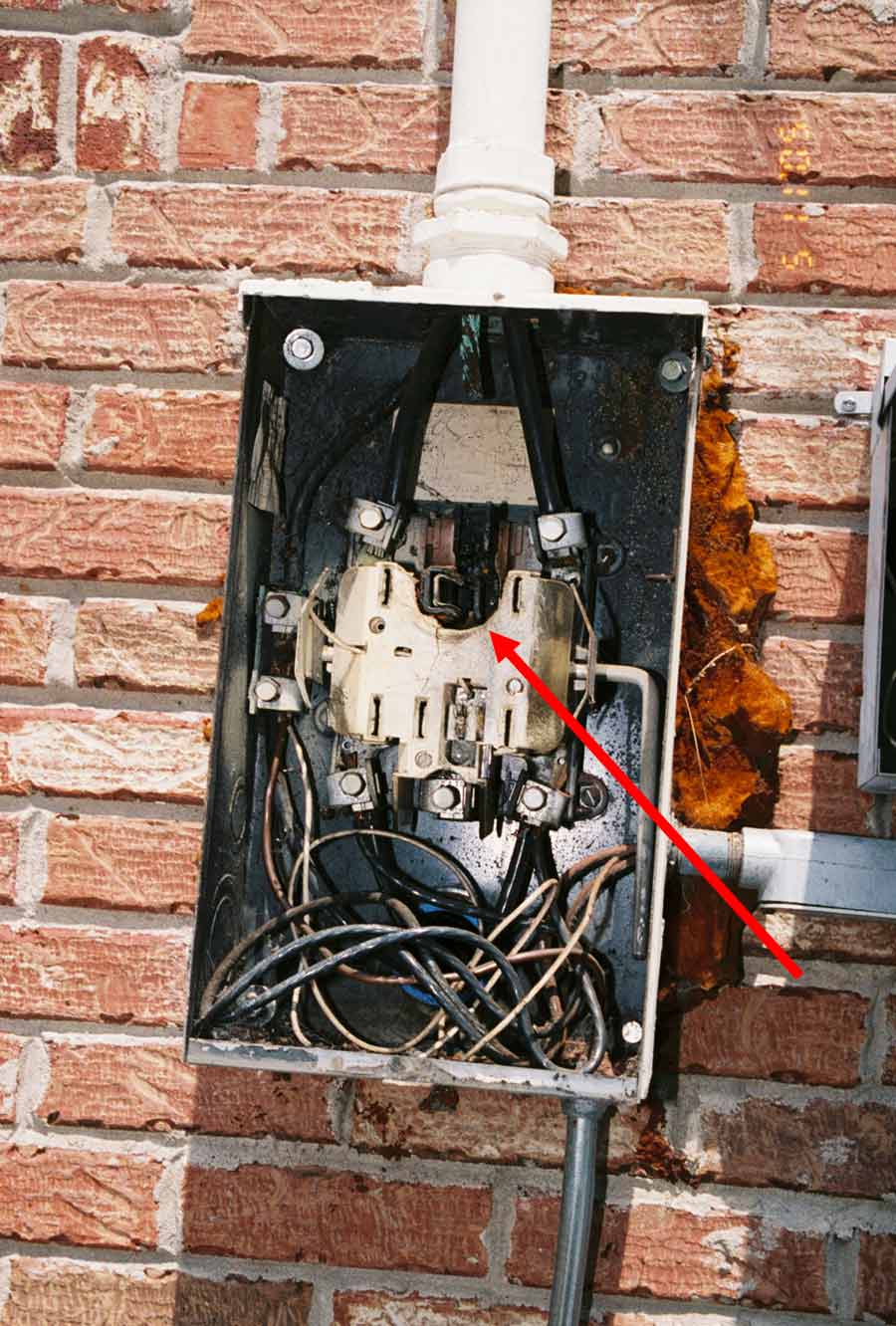

3-Phase Meterbase Still Being Used with Center Phase Burned Out.
Arced Extension Cord

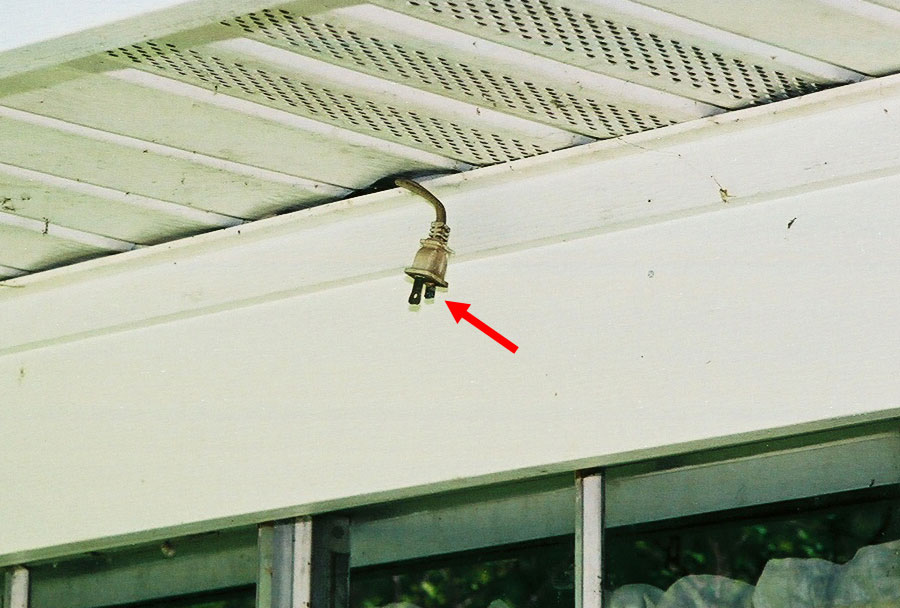

Arced Extension Cord under Eaves Used to Power Patio Fan. (F06-24)
Arced Extension Cord

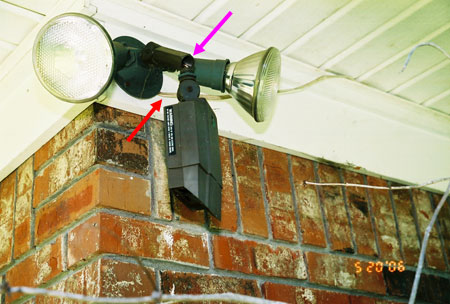

Extension cord Used to Permanently Power Flood Lights (F06-24).
