Bathroom Fan Fires


Bathroom fans usually fail because of wear to the motor bearing. Almost all bathroom fans use a shaded pole motor which has the lowest starting torque of any induction motor. Hence, if there is any mechanical resistance in the barring, there is a good chance that the motor will not start. This is a locked rotor condition. Experimental results show that with the rotor locked, the temperature of a bathroom fan motor can reach in excess of 340 °F. Bathroom fan motors are typically NEMA Class B, which corresponds to a maximum insulation temperature of 266 °F. Thus, the varnish insulation on the wire will start to fail, and depending on how the motor winding fails, this can cause a fire. This problem is compounded by lint build up and plastic propellers, which can ignite and/or add fuel to the fire. To prevent this, new bathroom fans have a thermal fuse, which opens at approximately 260 °F. The accompanying photographs depict actual cases and experimental results.

For Maximum Resolution, Click on the Body of the Picture.

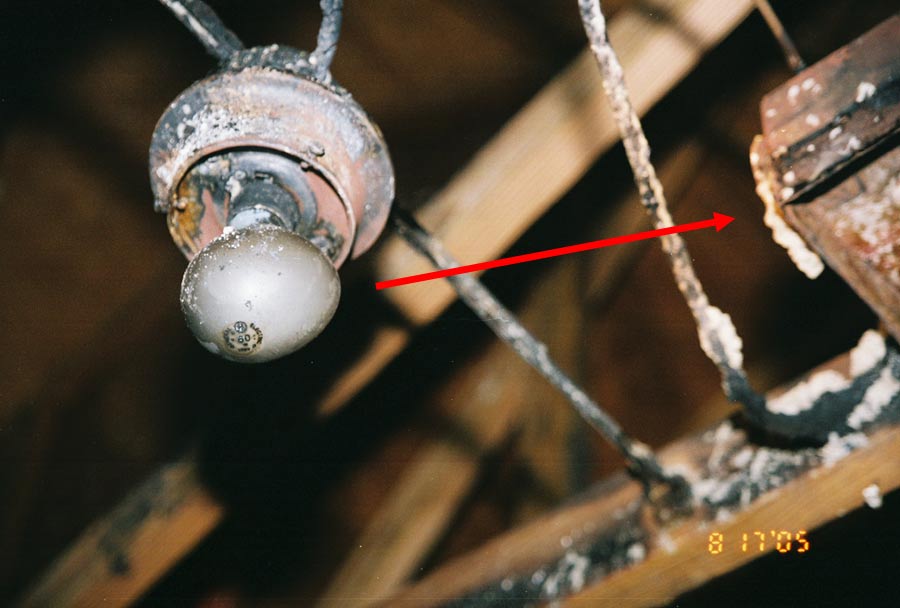

Picture of Light Blub Pulled toward Fan

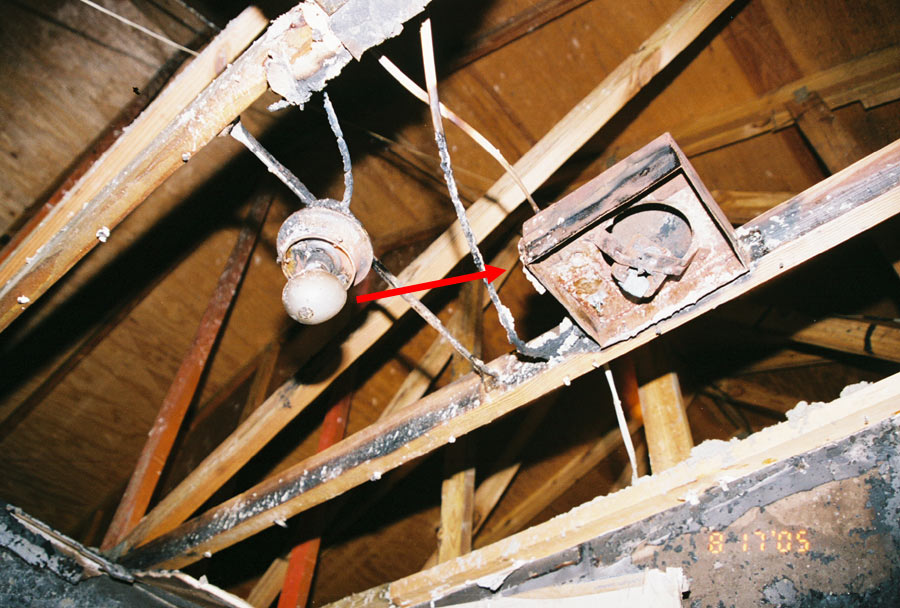

Light Bulb Pulled Toward Bathroom Fan (F05-18).
Better View of Distored Bulb
Better View of Bulb Pointing Toward the Heat Source (F05-18).
Shaded Pole Motor

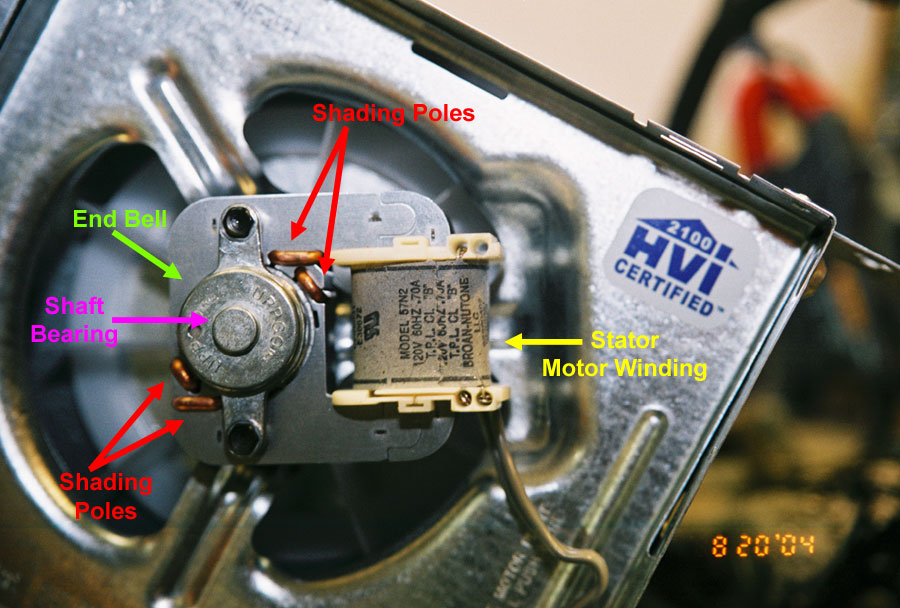

Shaded Pole Motor (F05-18).

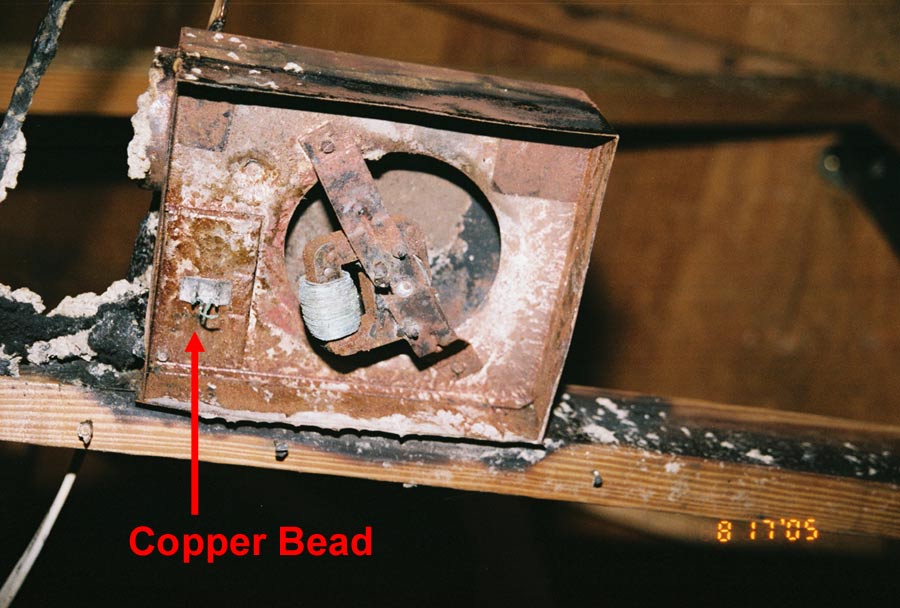

Hot Spot on Top of Fan Housing

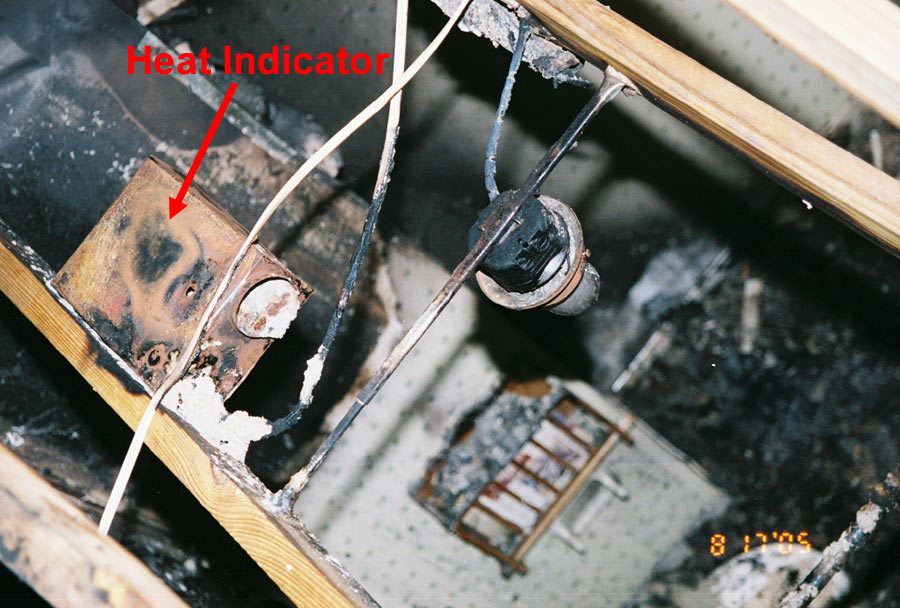

Hot Spot on Top of Fan Housing (F05-18).

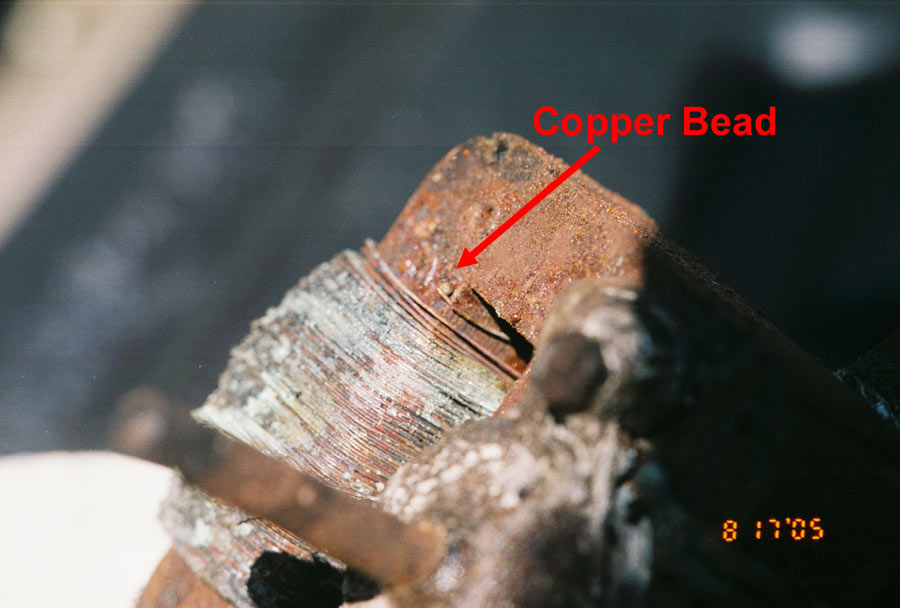

Copper Bead on Motor Winding
Copper Bead on Motor Winding (F05-18).
Copper Beading Motor Winding

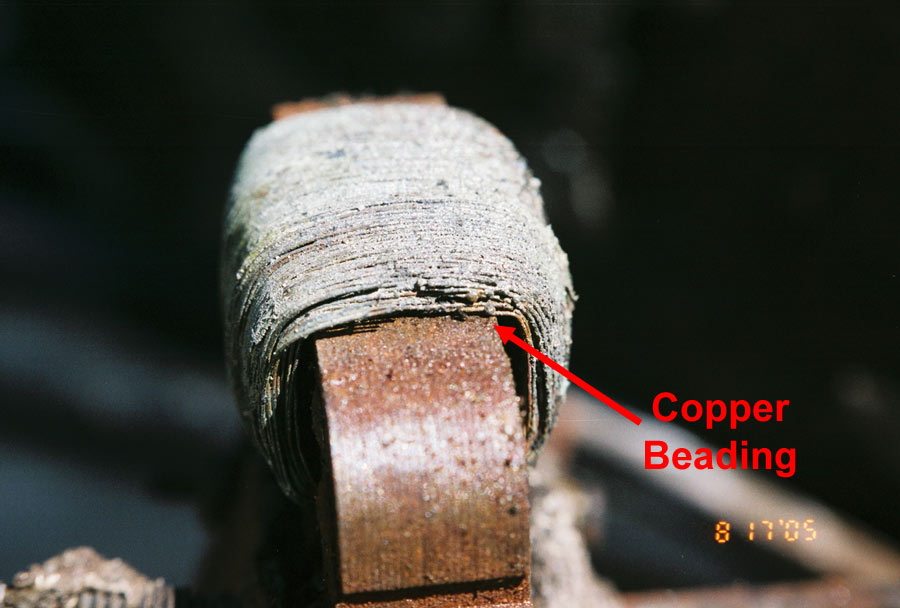

Copper Beading Motor Winding (F05-18).
Copper Bead on Fan Power Cord

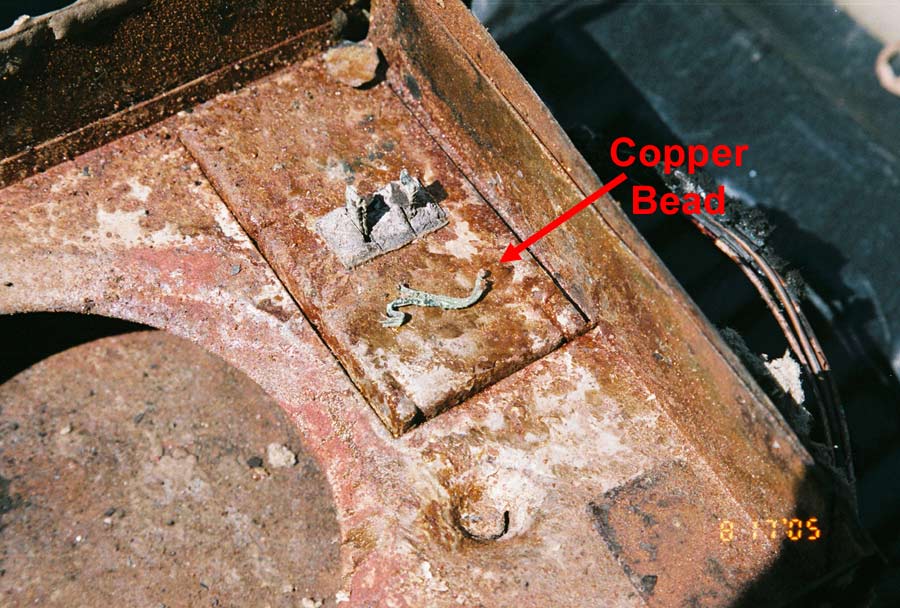

Copper Bead on Fan Power Cord (F05-18).
Plastic Wire-Nuts Were Not Consumed by the Fire

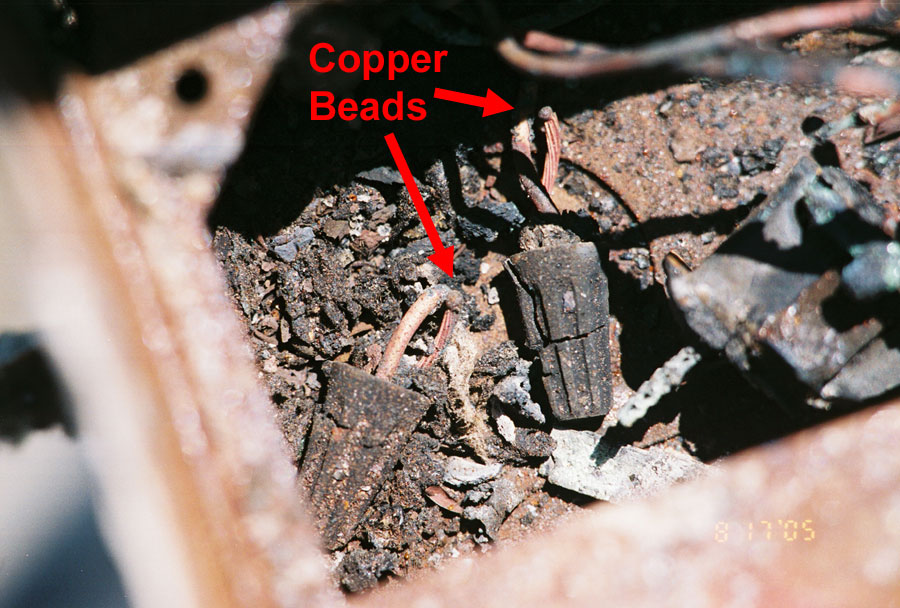

Plastic Wire-Nuts Were Not Consumed by the Fire (F05-18).

Experimental Result:

For Maximum Resolution, Click on the Body of the Picture.

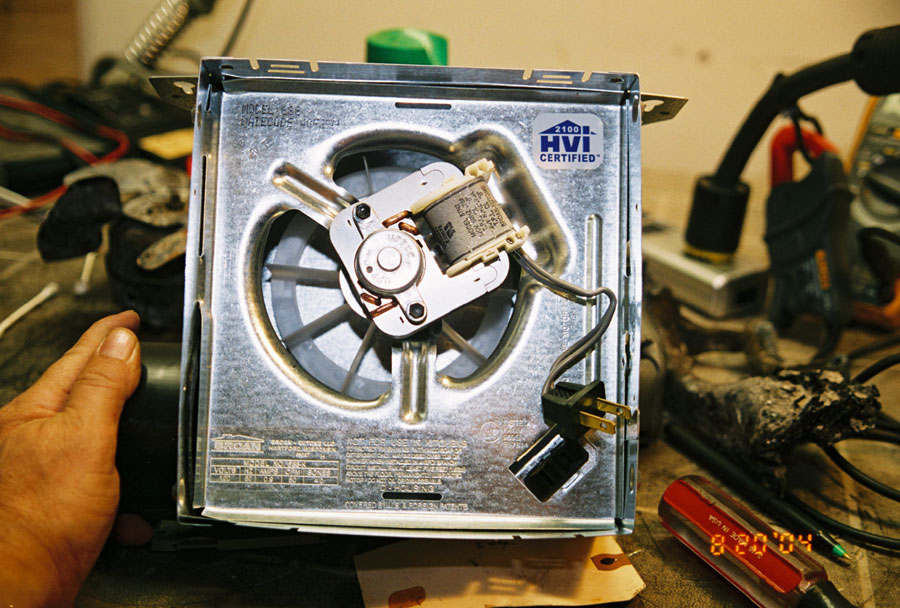

Broan Exemplar Bathroom Fan
Broan Exemplar Bathroom Fan (F04-21).
Shaded Pole Fan Motor
Shaded Pole Fan Motor (F04-21).
Disassembled Shaded Pole Fan Motor

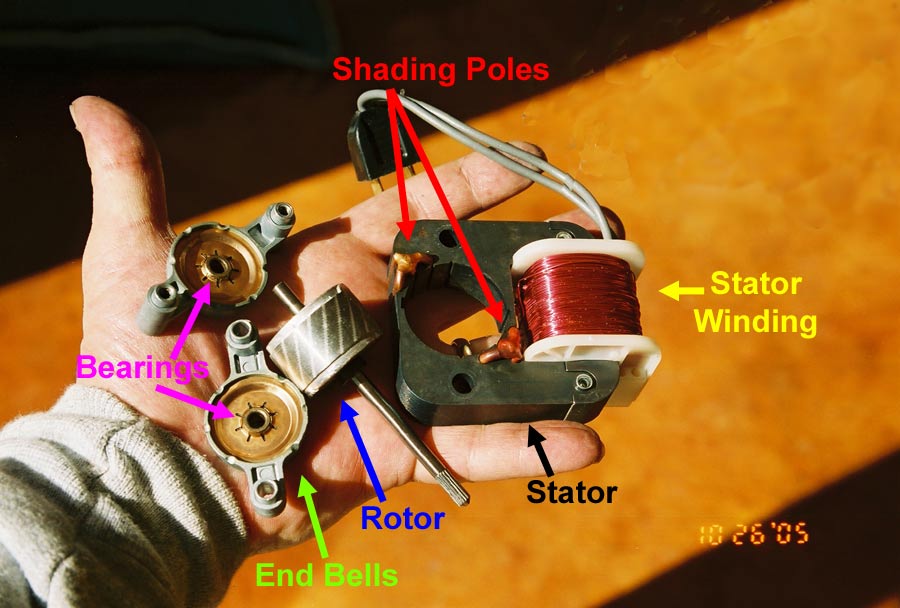

Disasembled Shaded Pole Fan Motor (F05-20).

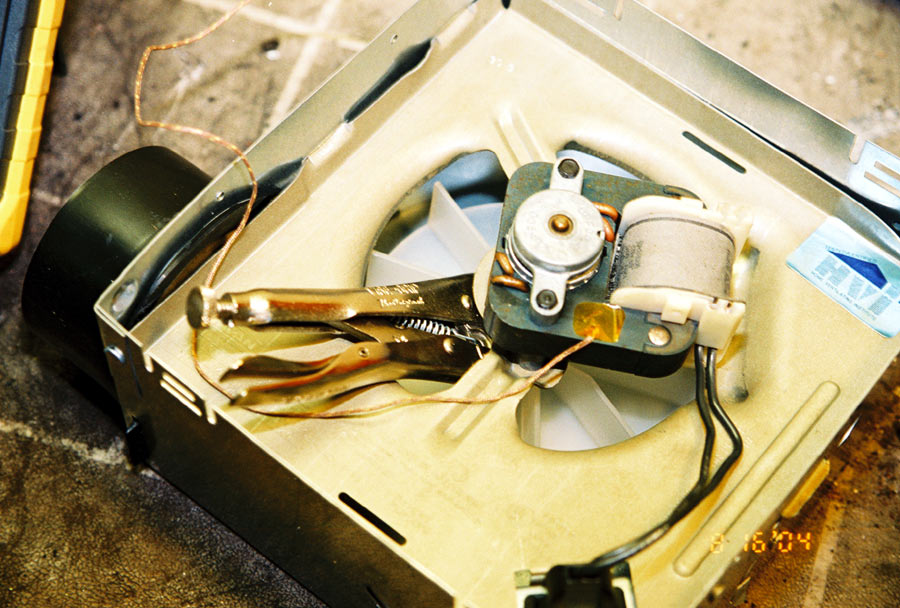

Intentionally Locked Rotor
Intentionally Locked Rotor (F04-21)

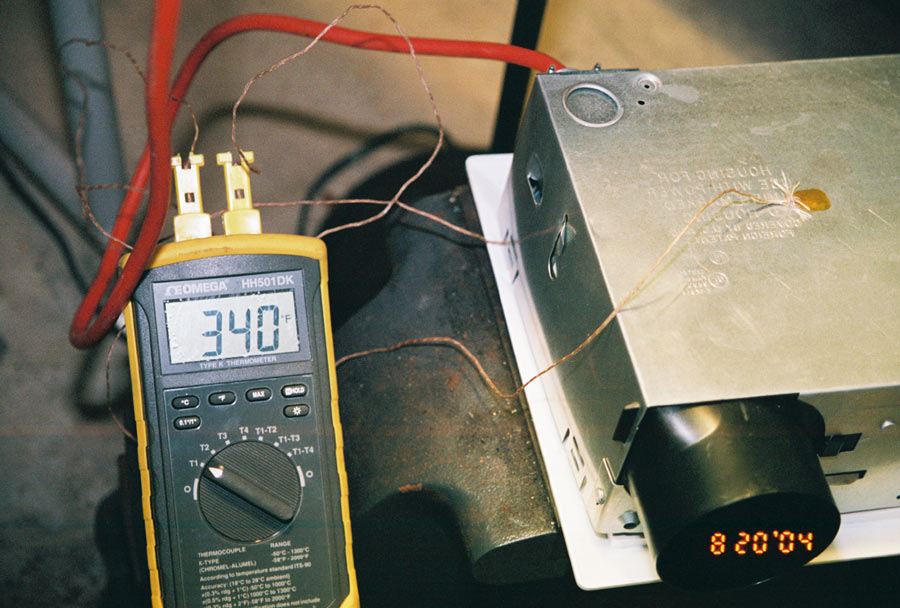

Temperature at the Steel Motor Core with the Rotor Locked
Temperature at the Steel Motor Core with the Rotor Locked (F04-21).

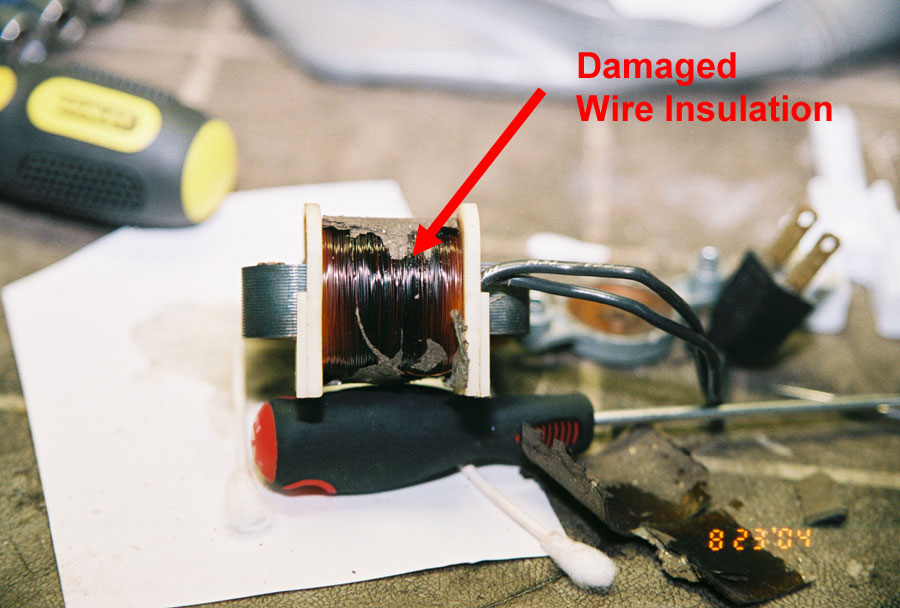

Damaged Wire Insulation
Damaged Wire Insulation (F04-21).
Heat Damage to Plastic Spool

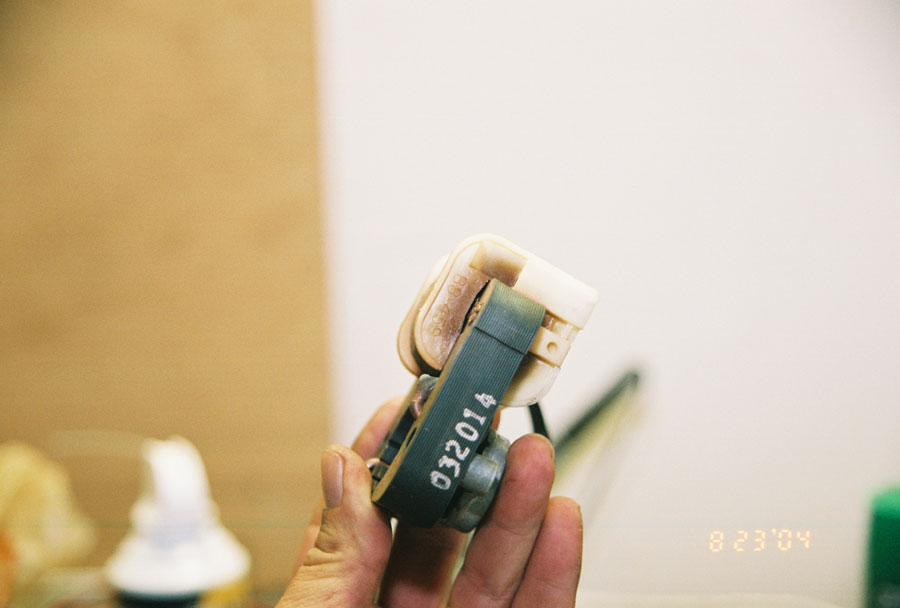

Heat Damage to Plastic Spool (F04-21).

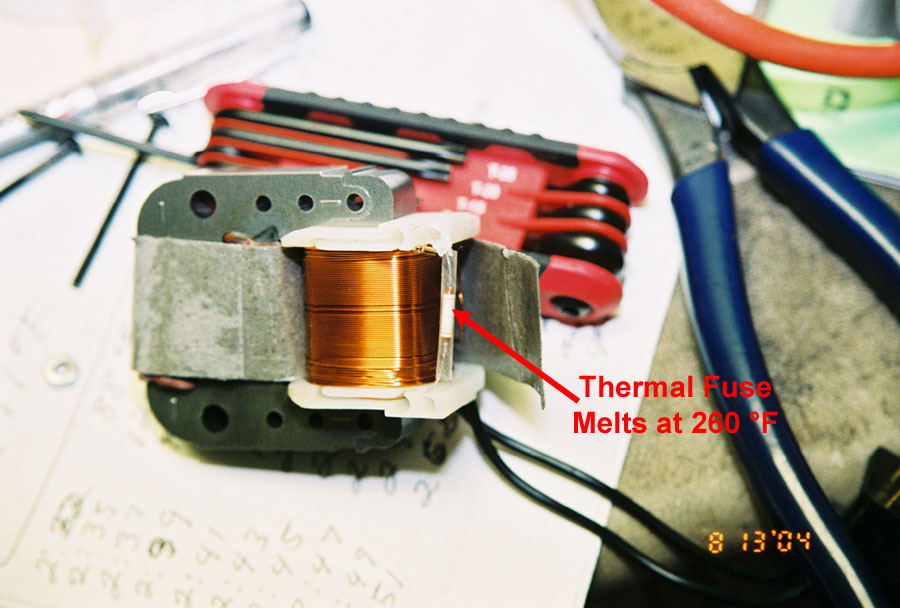

New Bathroom Fan Motors Have a Thermal Fuse
New Bathroom Fan Motors Have a Thermal Fuse (F04-21).
