Smoke Alarm Kidde Model i12040 Teardown

For Maximum Resolution, Click on the Body of the Picture.

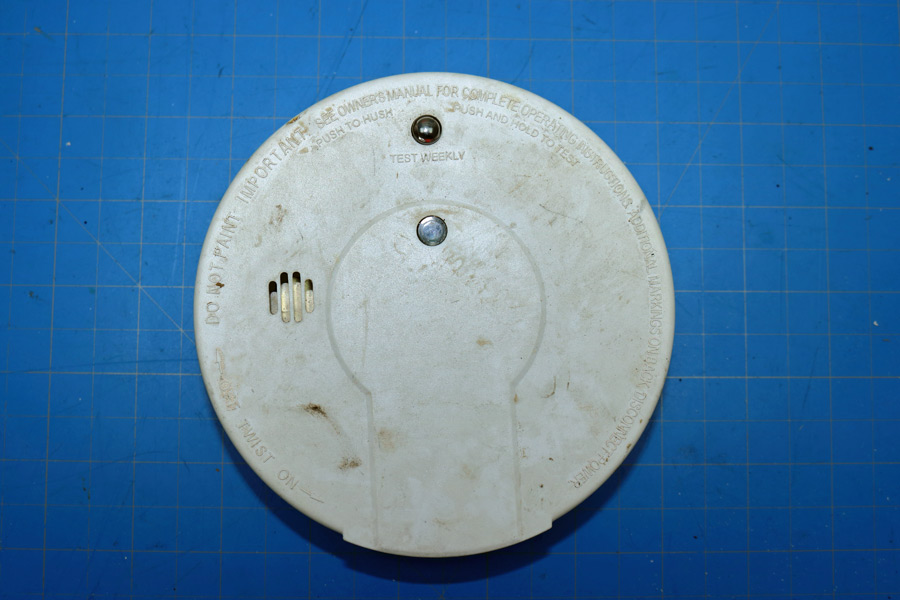

Front Kidde Model i12040 Smoke Alarm
Front of Kidde Model i12040 Smoke Alarm.

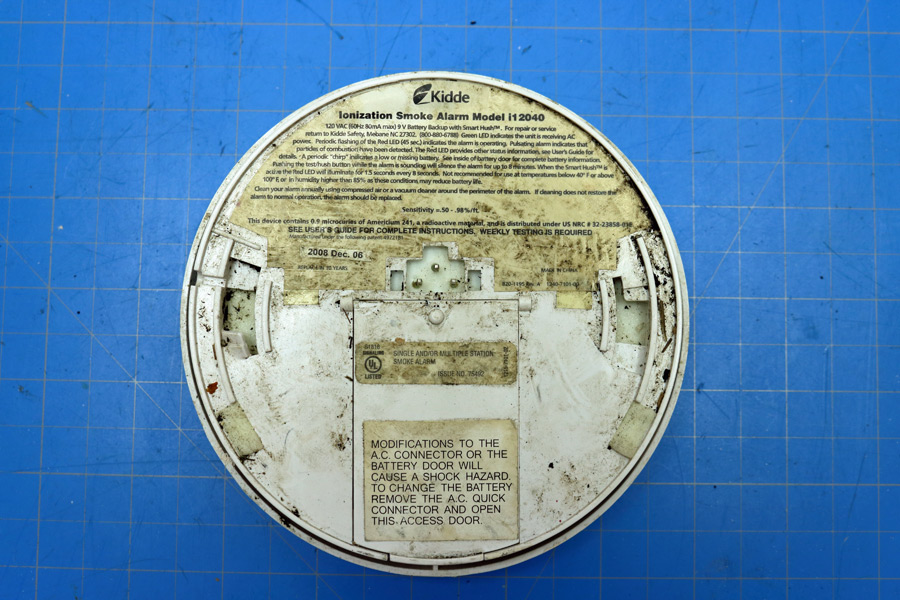

Back Kidde Model i12040 Smoke Alarm
Back of Kidde Model i12040 Smoke Alarm.

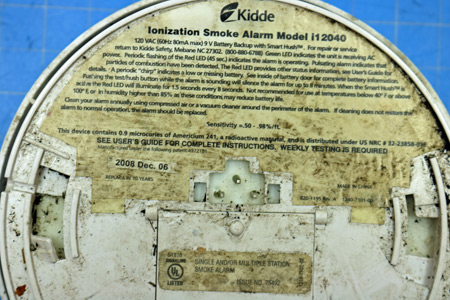

Text on Back Kidde Model i12040 Smoke Alarm
Tezt on Back of Kidde Model i12040Smoke Alarm.

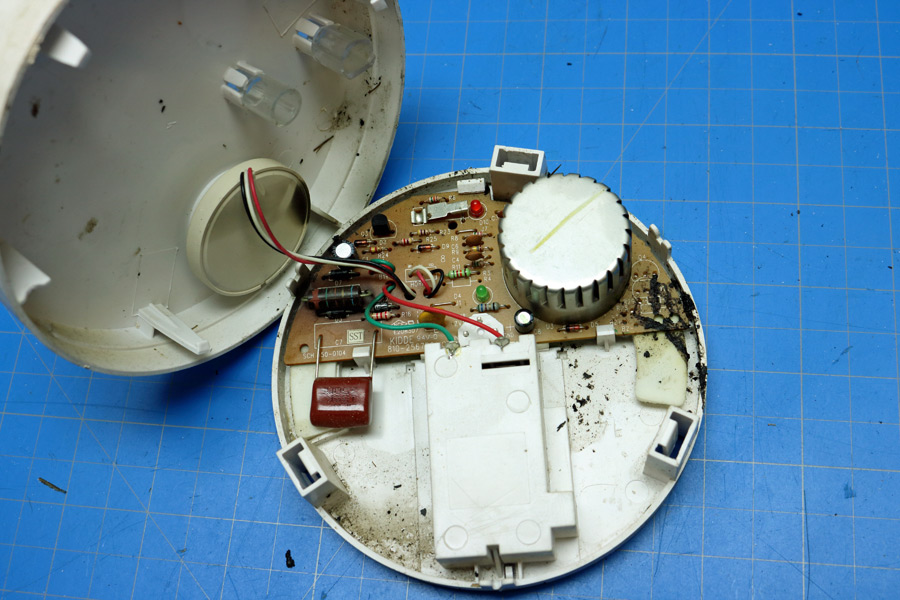

Inside Kidde Model i12040 Smoke Alarm
Inside Kidde Model i12040 Smoke Alarm.
Back of PC Board in Kidde Model i12040 Smoke Alarm
Back of PC Board in Kidde Model i12040 Smoke Alarm.

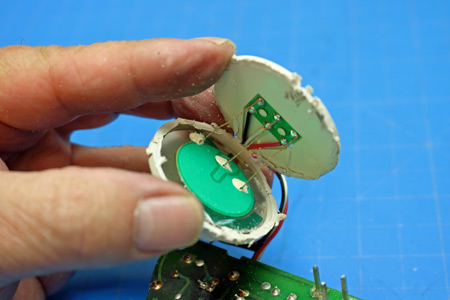

Horn in Kidde Model i12040 Smoke Alarm
Horn in Kidde Model i12040 Smoke Alarm.
